CL2 Chlorine Single Gas Leak Detector , Gas Level Detector Self Calibration Function

Name: CL2 Chlorine Single Gas Leak Detector Gas Level Detector Self Calibration Function
Brand: YuanTe
Price: 1 USD

Brand Name : YuanTe

Model Number : YT-95H-CL2

Certification : CE CNEX ISO9001-2015

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 500PCS/DAY

Delivery Time : 2-3 days

Packaging Details : Carton Box

Detected Gas : CL2 Chlorine

Measure Range : 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-250ppm

Color : Blue

Packing : Paper Box

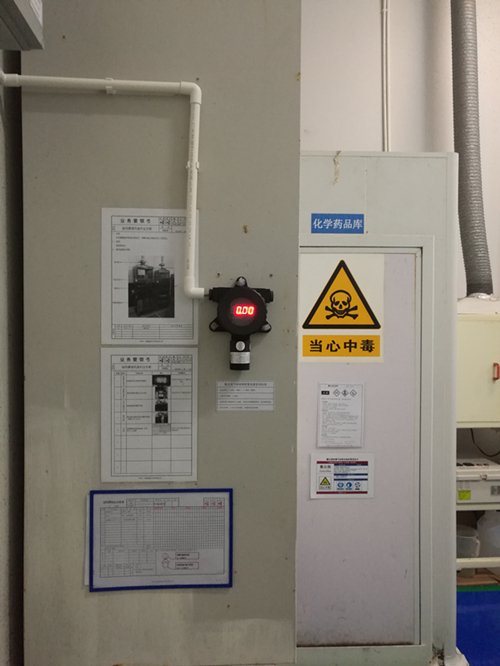

Install Method : Wall-mounted, Piping-type, Flow-type

Power : 12-36Vdc

Contact Now

CL2 Chlorine Gas Concentration Single Gas Detector Level Detector With Alarm

Funtions:
1. Monitor the CL2 Chlorine gas in environment or pipeline.
2. With self-calibration and zero calibration function, makes the detection more accurate and reliable.
3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
4. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification. (optional)
5. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices. (optional)
6. Working Voltage:24V DC
7. Case: die-cast aluminum

Specification

Gas detected	CL2, Chlorine
Detection principle	Electrochemistry
Install method	Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range	0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-250ppm
Resolution	0.001ppm, 0.01ppm, 0.1ppm
Precision	≤± 1% FS or ± 2-3% FS
Signal output	4-20mA, 0-5V, RS485, relay(optional)
Response time	≤10S	Recovery time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(FS/year)	Display	High-light nixie tube display
Connection mode	G1/2 external thread explosion-proof flexible pipe	Unit	ppm
Temperature	-20 to 50°C	Humidity	0-95%RH
Explosion-proof	Ex dⅡCT6	Degree of protection	IP65
Alarm	Sound, light	Operating time	24H
Dimensions	18015090mm	Weight	≤2kg

Characteristics:
1. Standard equipped with three-wire system 4-20mA analog output; relay output; RS485 output.
2. Unique infrared ray control function, which can non-contacted control the device.
3. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
4. Explosion-proof design, fast, reliable and stable.
5. Explosion-proof grade: Ex dⅡCT6
6. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
7. Detachable probe/gas cell: It is very easy to calibrate and replace sensor
CL2 Chlorine Single Gas Leak Detector , Gas Level Detector Self Calibration Function

Services:
1. For all our customers, we guarantee one year warranty, and life-long maintenance.
2. All inquiries will be replied in 24 hours.
3. We will provide technical support, our engineers will help to solve the problems you met.
4. We can provide OEM service.
5. We are manufacturer with own factory, welcome to visit our factory.
6. All products will be well checked and well packed before shipment, and qualification certificatewill be provided.
